    Container door trip



    Product Description

    Product Name

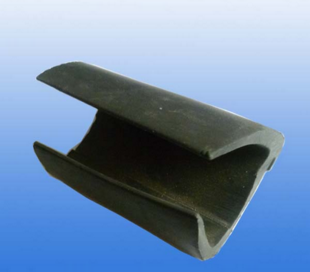

    Container Door Seal Gasket

    Parts No.

    GP-DG81101

    GP-DG81102

    GP-DG81103

    HC-DG81101

    HC-DG81102

    HC-DG81103

    TYPE

       J

        C

        T

         J

        C

        T

    Specification

    1141*2251mm

              1141*2556mm

    Weight

    0.6kg/m, 6.6kg/set

    Standard

    ISO 20’&40’ GP Container

    ISO 40’ HC Container

    Material

    EPDM

    Finished Surface

    black

    Package

    50sets per plywood pallet

    NOTE:



    TESTITEMS

    STANDARD

    TEST RESULTS

    TENSILE STRENGTH MPA

    ≥10

    12.8

    ELONGATION AT BREAK %

    ≥300

    430

    HARDNESS SHA

    70±5

    68

    TEAR STRENGTH KN/M

    ≥40

    43

    COMPRESSION SET(COMPRESSION AT 25% AFTER 100°C x 22H)%

    ≤18

    13.5

    OZONE RESISTANCE

    NOCRACK

    NOCRACK

    BRITTLE TEST

    ≤-50

    GOOD

    MATERIAL

    EPDM

    EPDM

    container rubber sealing strip Physical properties
